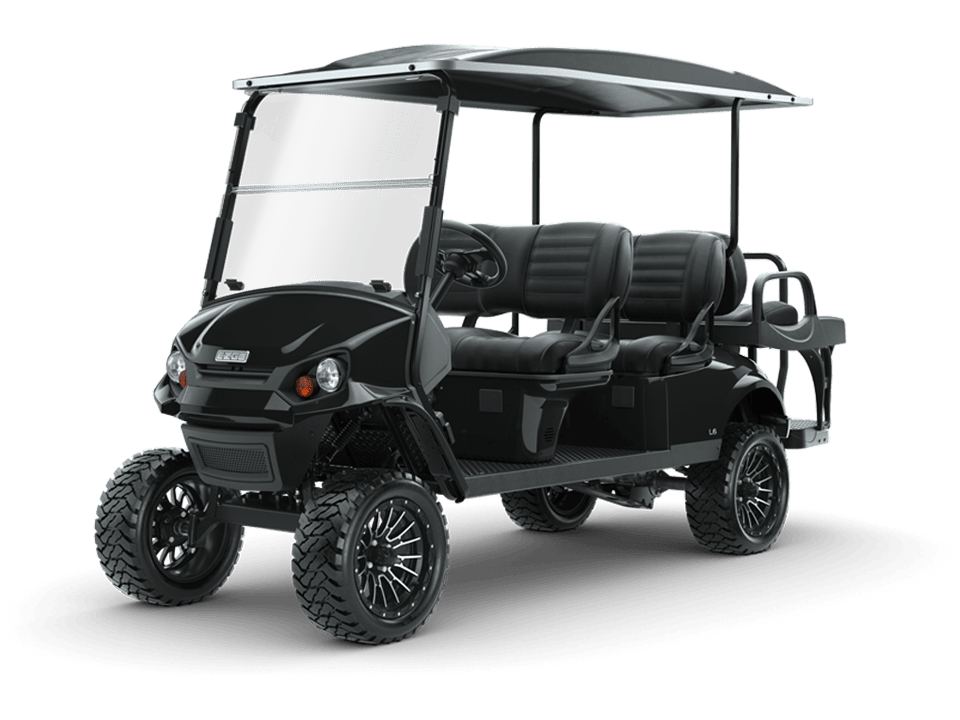

E-Z-GO Express L6 Gas
It’s time to get away, time to explore and see what adventures you can find along the next path. With eco-friendly powertrain options, rugged tires, and higher ground clearance, the Express™ L6 gives you a smooth and stylish ride. Whether it’s camping with the family or exploring a new trail with friends, let the Express L6 take you there.
- 13.5 – hp gas engine with closed-loop electronic fuel injection
- Convertible rear seat
- 4″ lift kit
| Frame | Welded Steel with Powder-Coat Protection |
|---|---|
| Body & Finish | Injection-molded TPO |

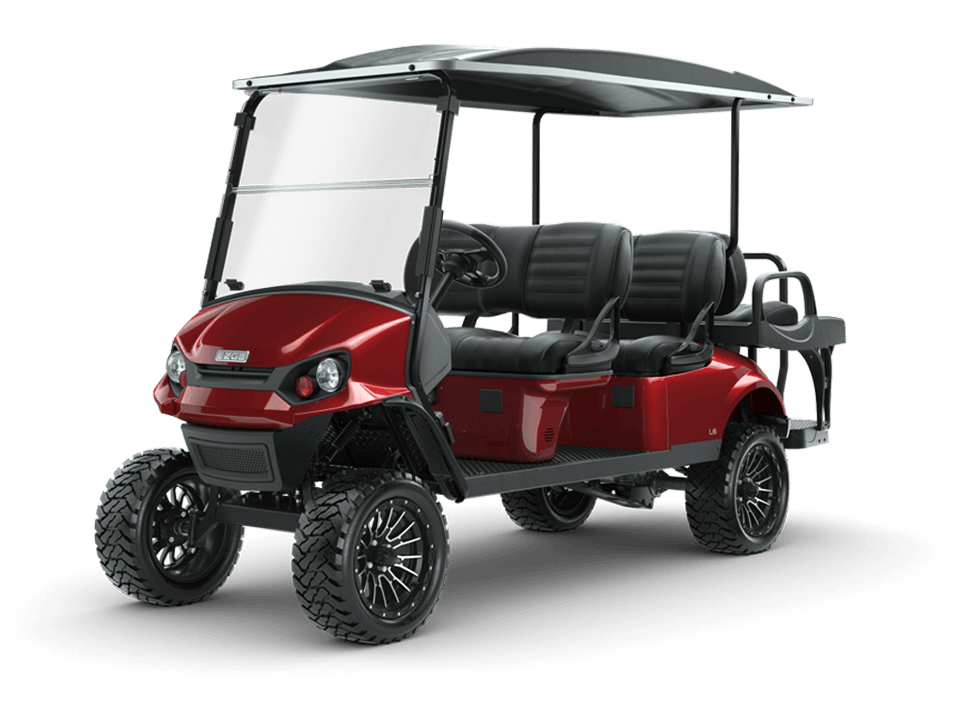

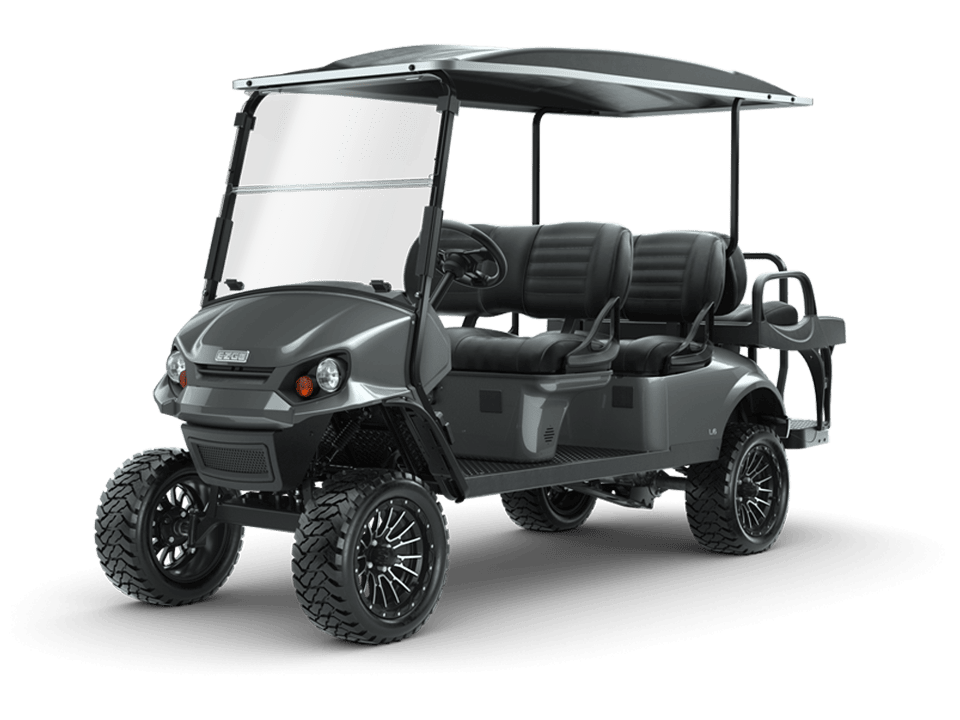

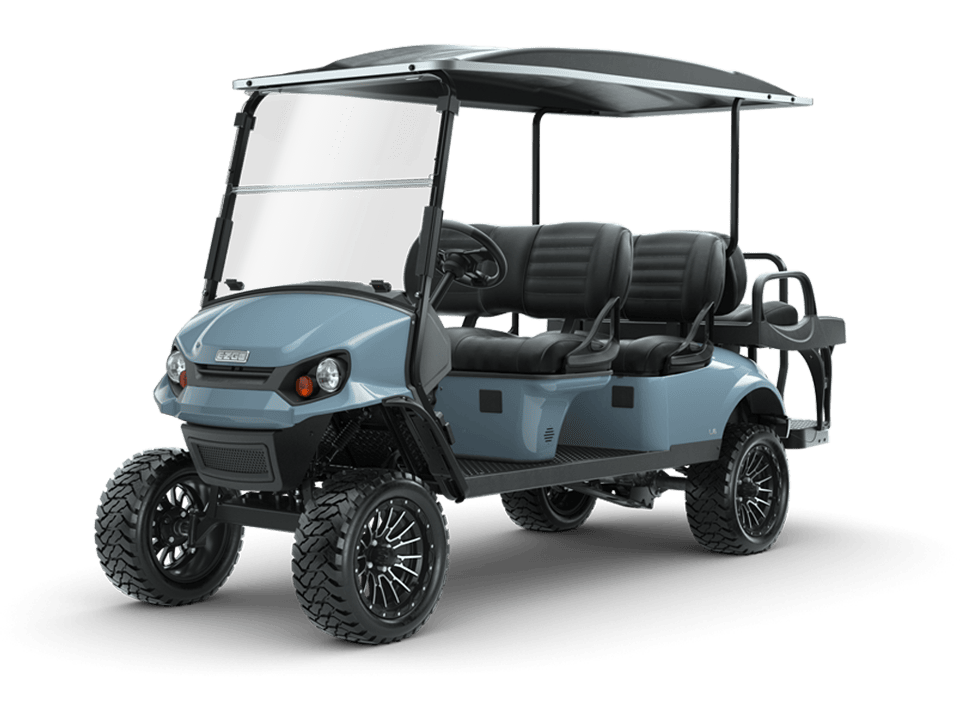

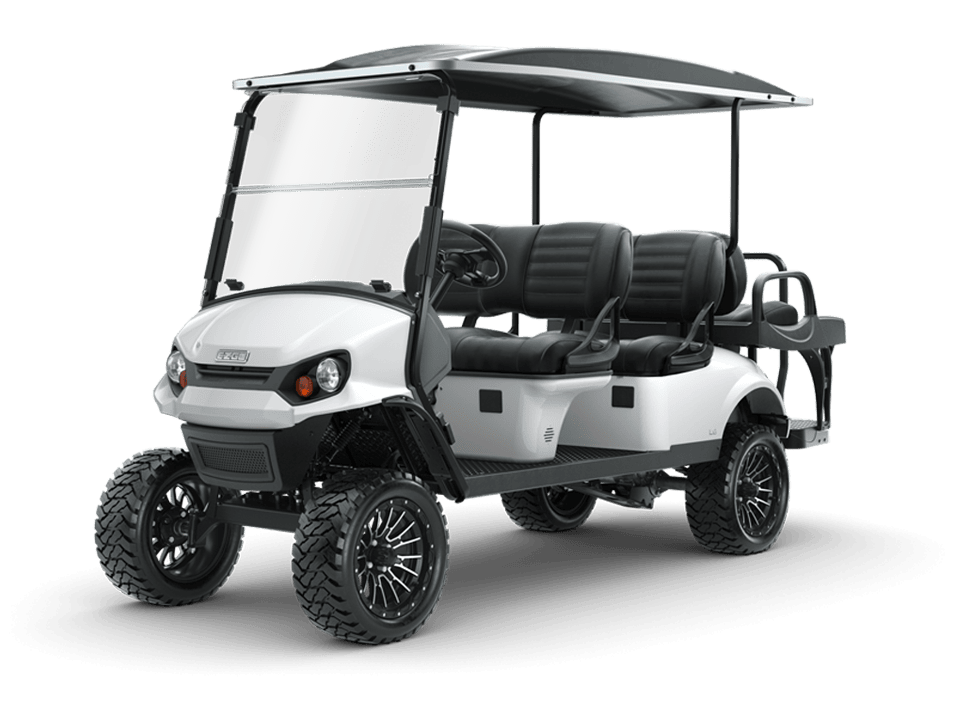

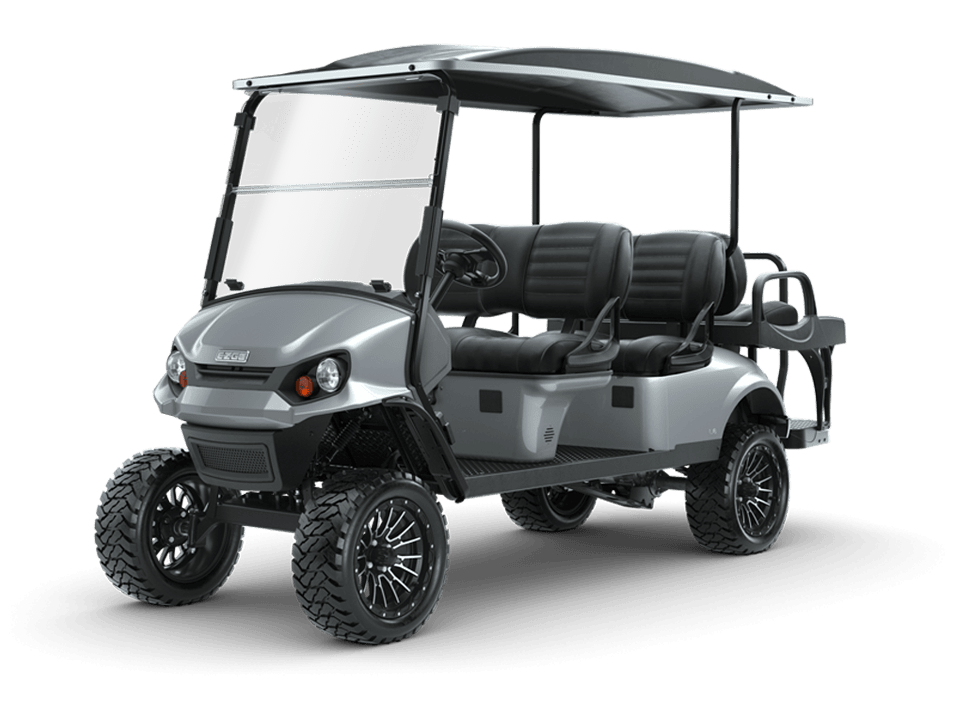

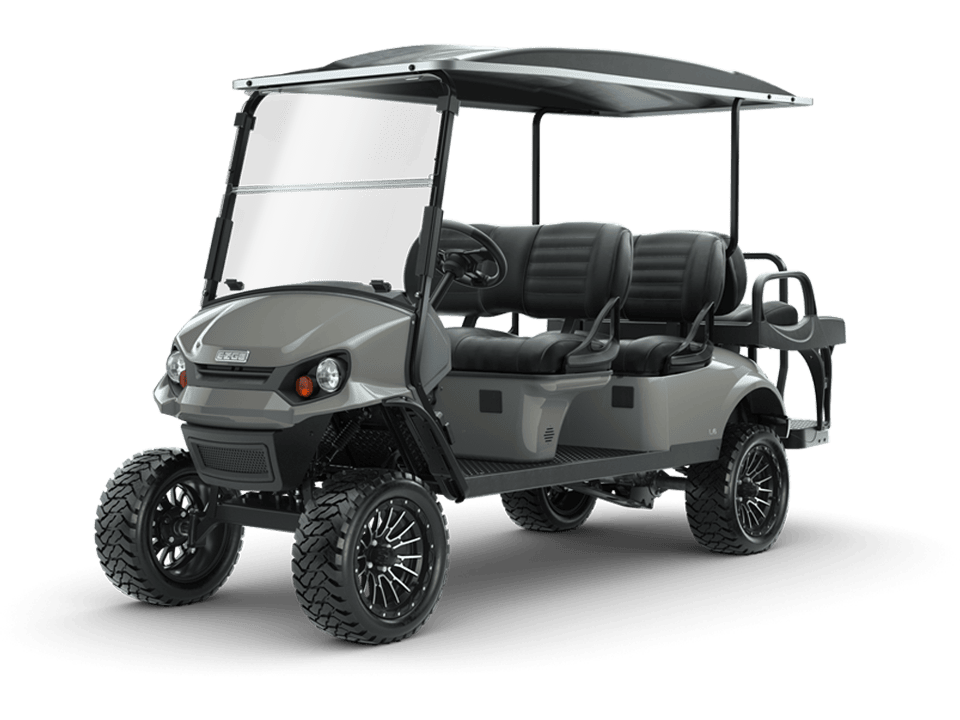

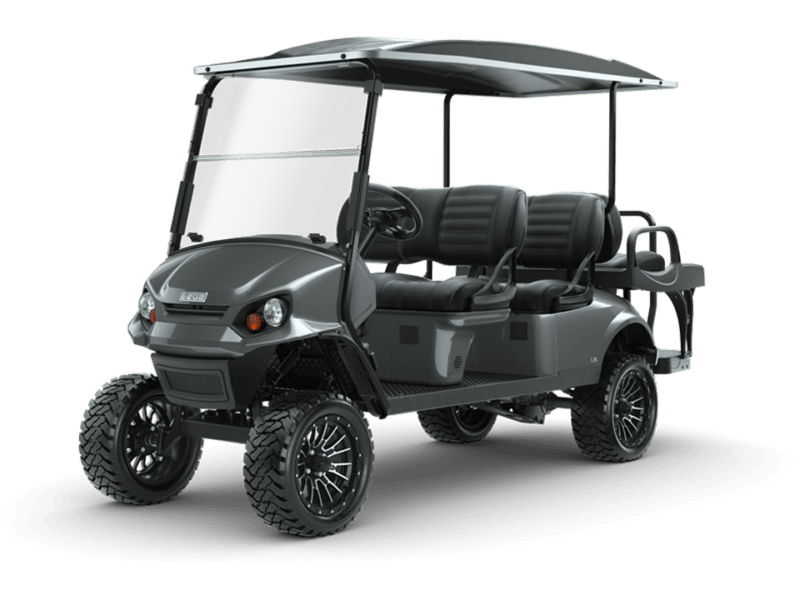

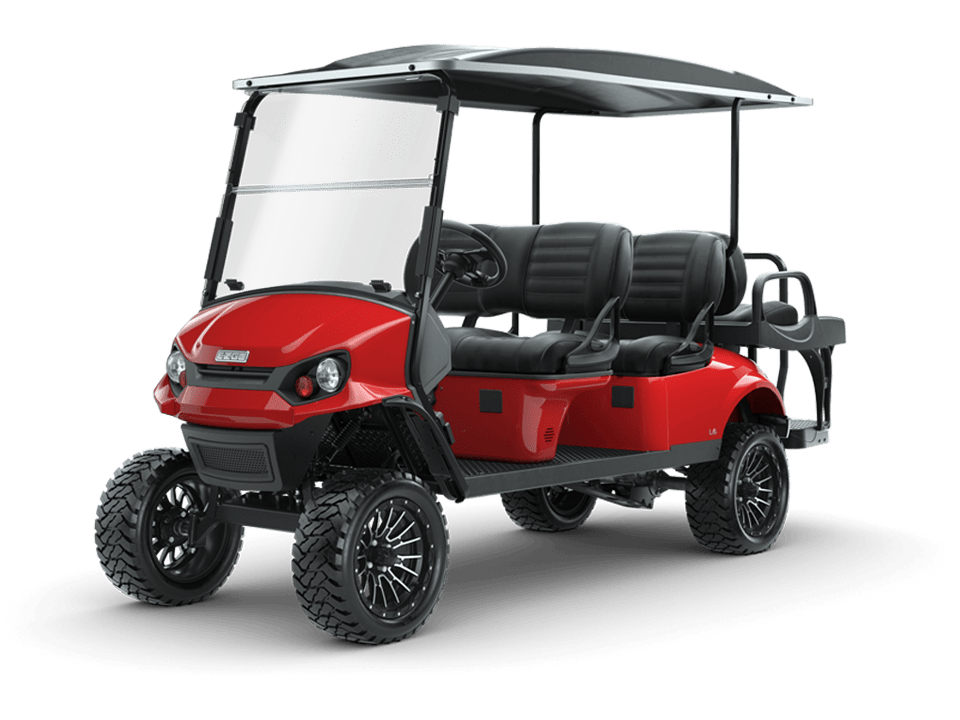

| Available Colors | Black, Electric Blue, Flame Red, Inferno Red, Metallic Charcoal, Ocean Gray, Platinum, Bright White, Slate |
| Overall Length | 144 in (364 cm) |
| Overall Width | 49 in (125 cm) |
| Overall Height | 55.5 in (141 cm) (top of steering wheel) (Without Roof) 83 in (211 cm) (top of canopy) (With Roof) |
| Wheel Base | 97 in (245 cm) |
| Wheel Track | 38.5 in (98 cm) |
| Ground Clearance | 7.0in (18 cm) |
| Power Source | 4-cycle 24.5 cu in (401 cc) |
| Valve Train | Single Cylinder OHV |
| Horsepower (KW) | 13.5 hp (10.1 kW) exceeds SAE J1940 standard |
| Electrical System | Starter/Generator – Solid State Regulator |
| Battery (Qty/Type) | One, 12-volt Maintenance Free |
| Key or Pedal Start | Pedal |
| Air Cleaner | Replaceable Dry Cartridge |
| Lubrication | Pressurized Oil System |
| Oil Filter | Spin-on |
| Cooling System | Air Cooled |
| Fuel Capacity | 5.96 Gallon (22.6 L) Tank |
| Drive Train | Continuously Variable Transmission (CVT) |
| Transaxle | Differential with helical gears |
| Gear Selection | Forward-Reverse |
| Seating Capacity | 6-person |
| Weight w/o Batteries | 1150 lb (522 kg) |
| Curb Weight | 1190 lb (540 kg) |
| Vehicle Load Capacity | 1200 lb (544 kg) |
| Outside Clearance Circle | 25.5 ft (7.8 m) |
| Speed | Up to 19 mph +/- 0.5 mph (Up to 30.6 kph +/- 0.8 kph) |
| Steering | Self-compensating rack and pinion |
| Suspension | Leaf springs with hydraulic shock absorbers |
| Service Brake | Rear wheel mechanical self-adjusting drum brakes |
| Parking Brake | Self-compensating, single-point engagement |
| Tires | MT Paramount, 23×10-14, Radial, SPDR Alloy Wheel |
