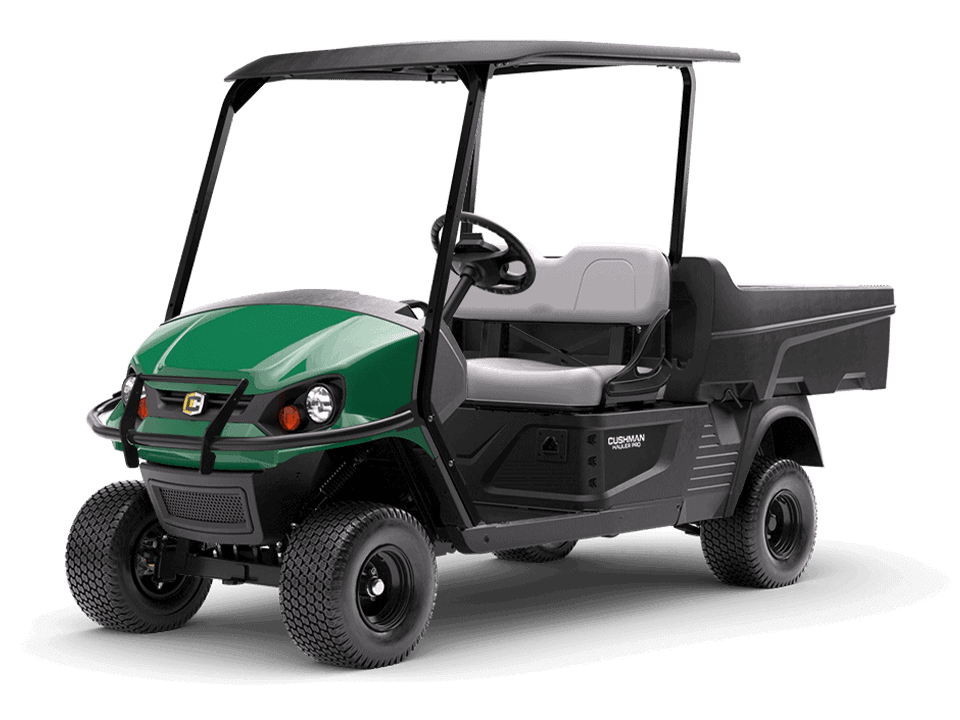

Cushman Hauler PRO
July 25, 2023

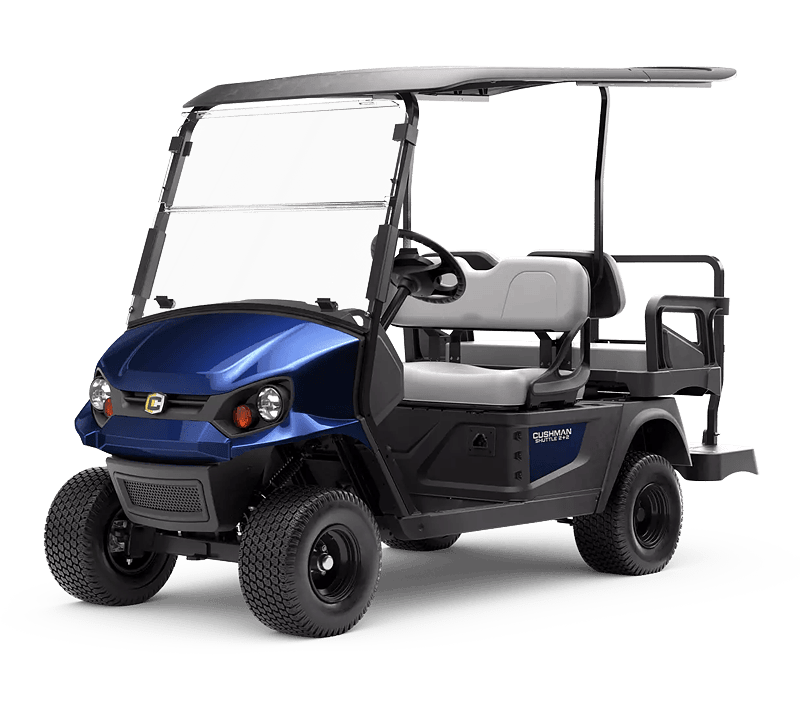

Cushman Shuttle 2+2 Gas
July 25, 2023

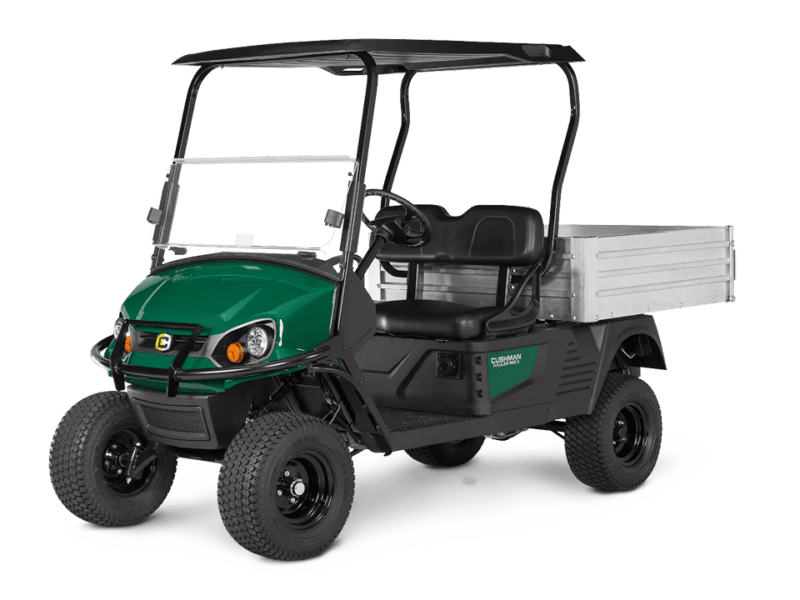

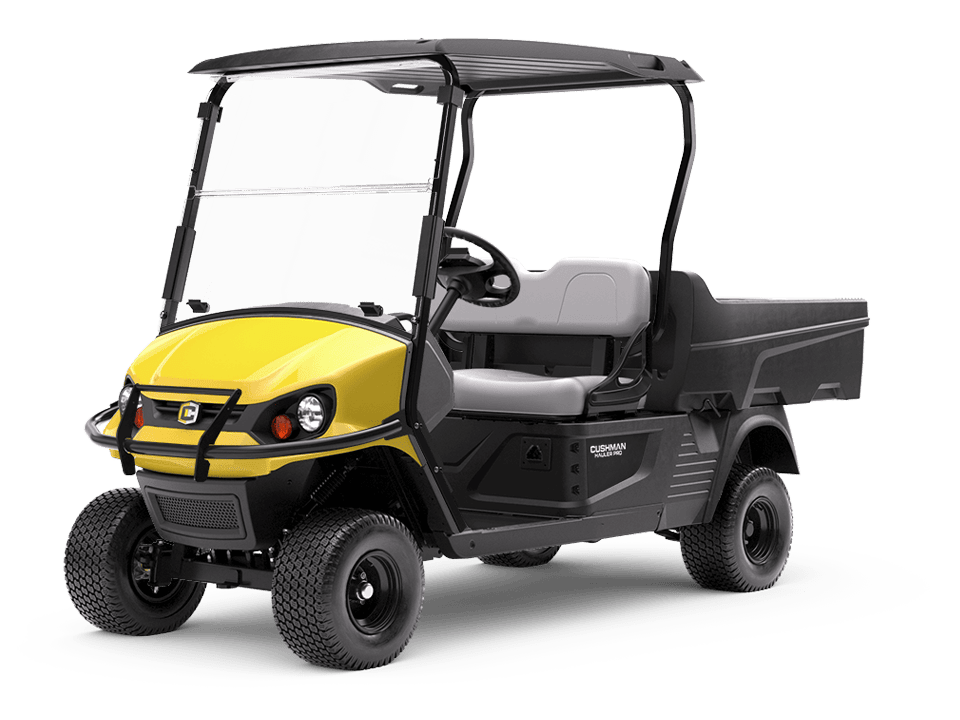

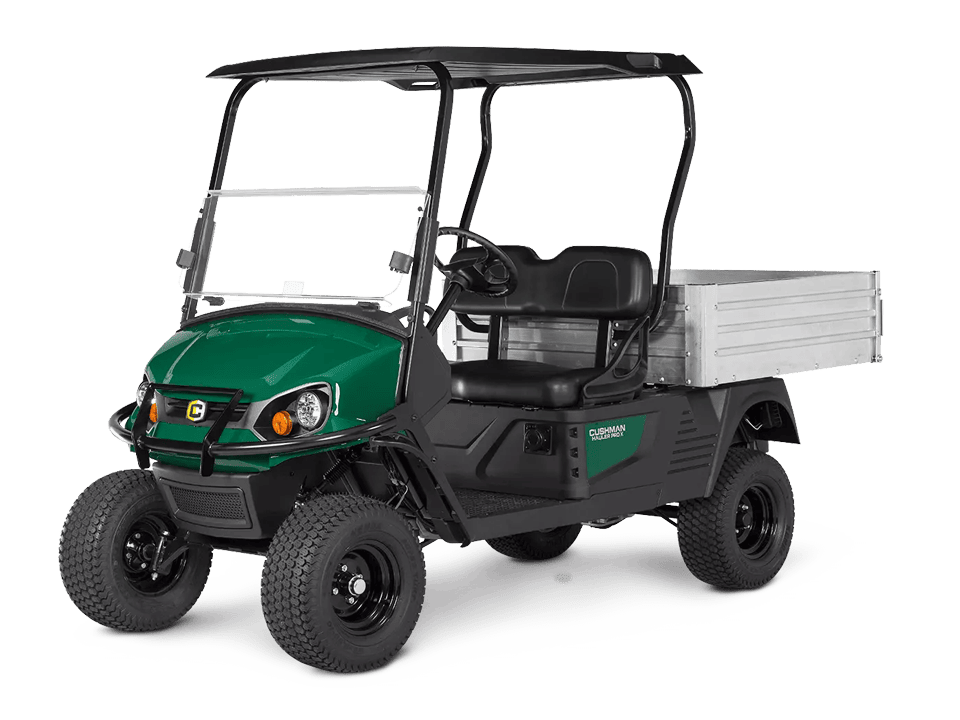

Cushman Hauler PRO-X
Experience unrivaled performance with maintenance-free ELiTE lithium powered by Samsung SDI Technology and improve your range even further with the optional triple battery pack. The Hauler PRO-X has added ground clearance that makes the rough terrain easy to overcome, built to go the extra mile and then go 50 more.
- 14.9 hp 56.7V Lithium Battery
- 1200 lb Towing Capacity
- 900 lb Vehicle Load Capacity
| Frame | Welded Steel with DuraShield™ Powder Coat |
|---|---|
| Body & Finish | Injection Molded TPO |

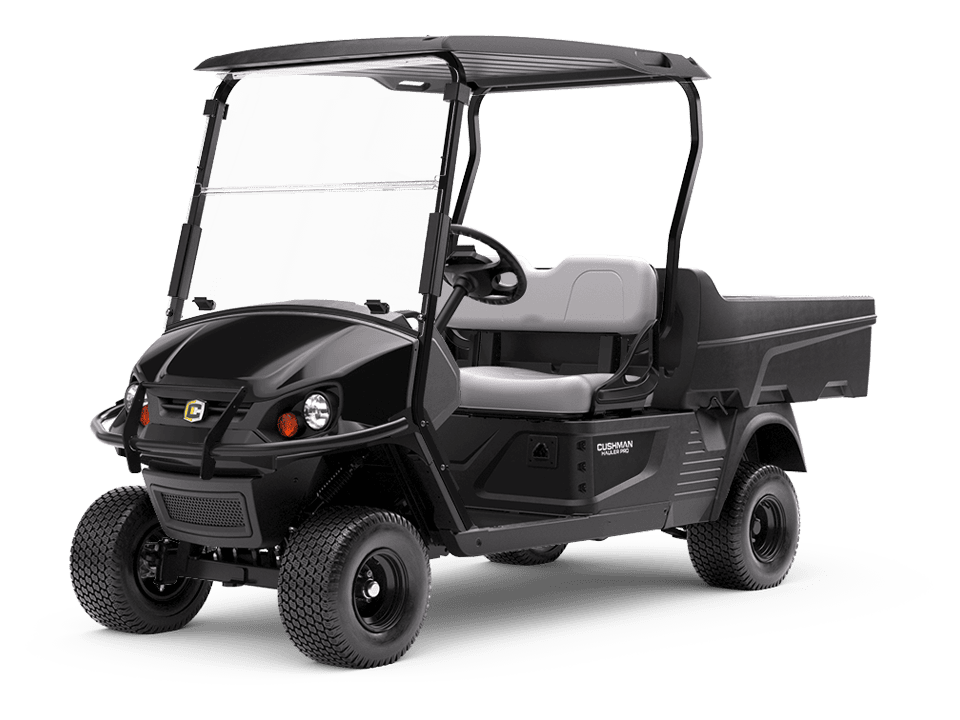

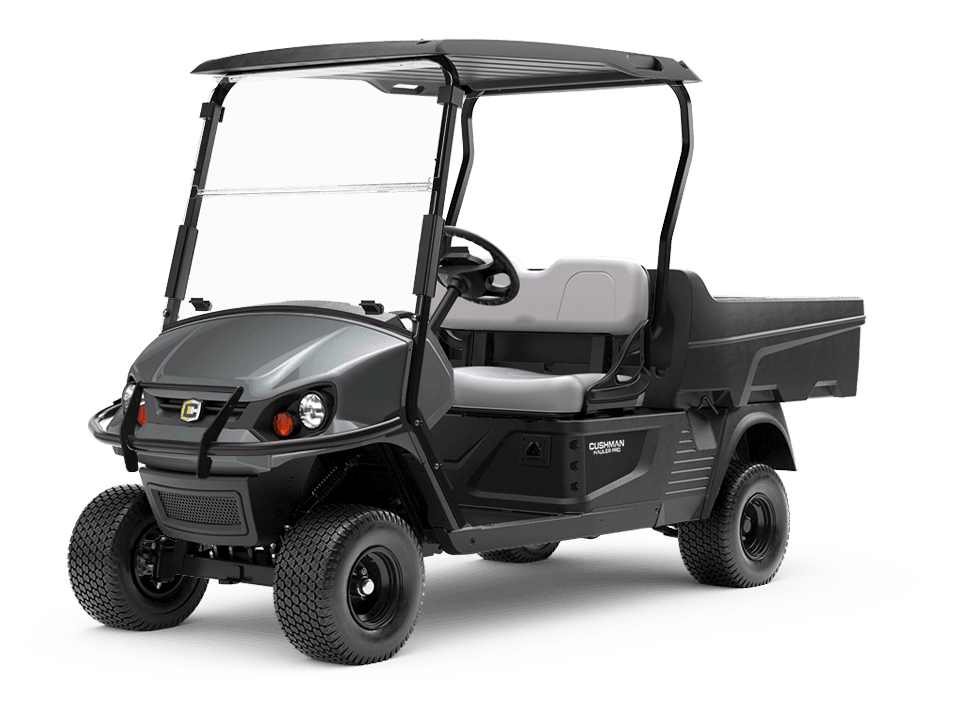

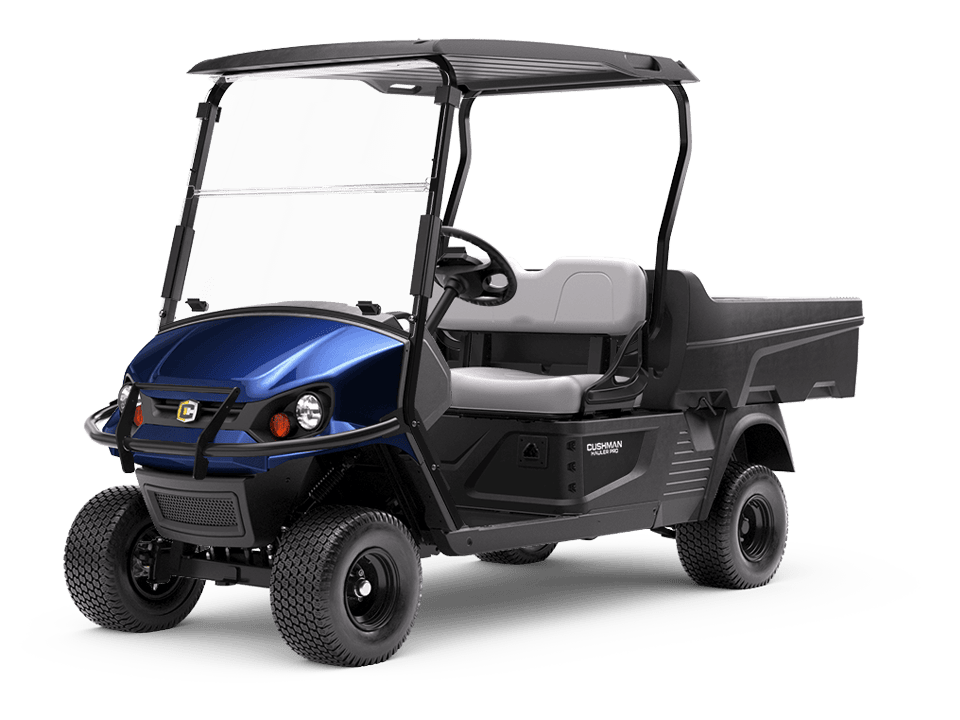

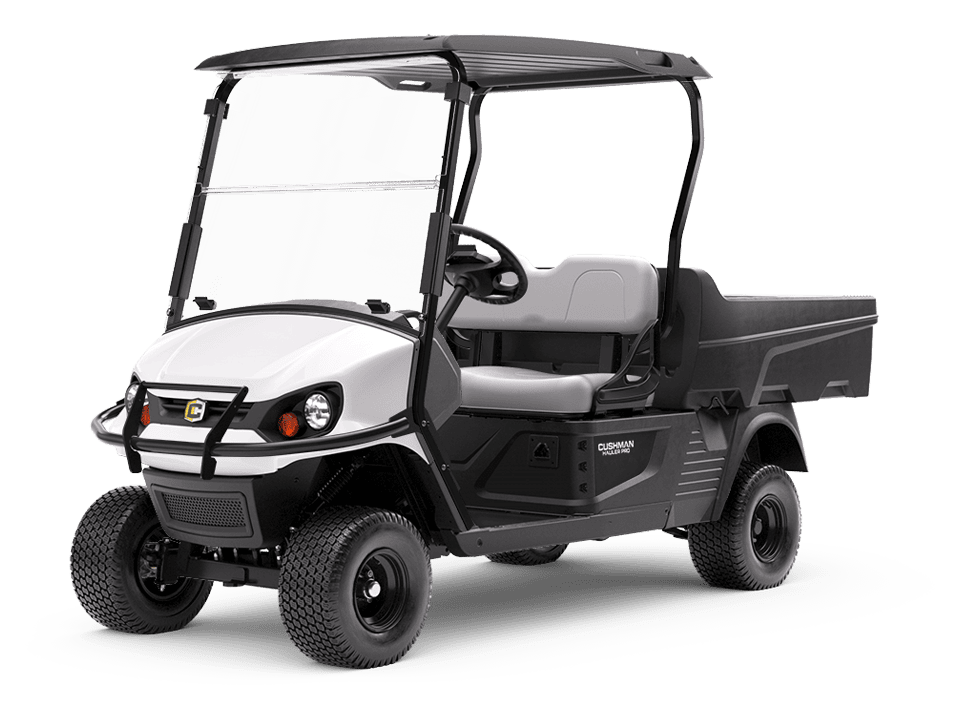

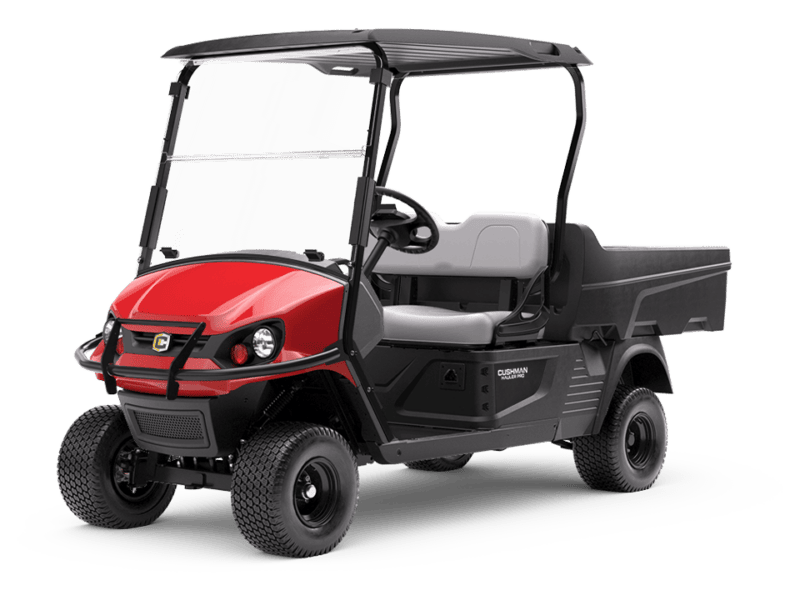

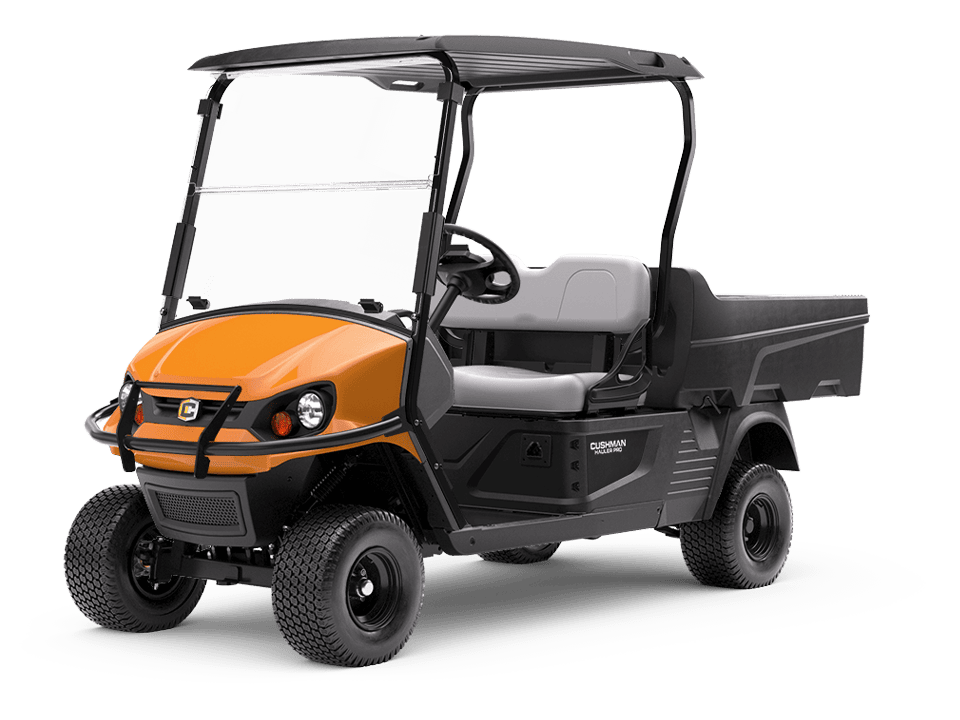

| Available Colors | Black, Bright White, Flame Red, Forest Green, Metallic Charcoal, Orange, Patriot Blue, Safety Yellow |
| Overall Length | 119.0 in (302.3 cm) |
| Overall Width | 49.4 in (125.5 cm) |
| Overall Height | No Canopy: 53 in (134.6 cm), With Canopy: 77.0 in (195.6 cm) |
| Wheel Base | 77.5 in (196.9 cm) |
| Wheel Track | Front: 38.0 in (96.5 cm), Rear: 38.5 in (97.8 cm) |
| Ground Clearance | 5.5 in (14 cm) |
| Cargo Deck Capacity | 12 cu ft (0.34 m3) |
| Cargo Deck Material | Roto-Molded Polyethylene |
| Power Source | 56.7V Lithium Battery |
| Horsepower (KW) | 14.9 hp (11.1 kW) |
| Electrical System | 48V, 12V auxiliary |
| Battery (Qty/Type) | 4.2 ELiTE – Twin Pack |
| Key or Pedal Start | Pedal |
| Battery Charger | 811W World Charger |
| Speed Controller | 350 Amp AC Controller |
| Drive Train | Motor Shaft Direct Drive |
| Transaxle | Limited Slip Differential |
| Gear Selection | Forward-Neutral-Reverse |
| Rear Axle Ratio | 16.99:1 |
| Seating Capacity | 2 Person |
| Curb Weight | 926 lbs (420 kg) |
| Vehicle Load Capacity | 900 lb (544.3 kg) |
| Towing Capacity | 1200 lb (680.4 kg) Max Load |
| Bed Load Capacity | 500 lb (362.9 kg) |
| Outside Clearance Circle | 21.5 ft (6.6 m) |
| Speed | 16.5 mph ± 0.5 mph (26.5 kph ± 0.8 kph) |
| Steering | Self-Compensating Rack & Pinion |
| Suspension | Leaf Springs w/ Hydraulic Shock Absorbers |
| Service Brake | Rear Wheel Mechanical, Self-Adjusting Drum |
| Parking Brake | Automatic, Electromagnetic |
| Tires | 18 x 8.5 – 8 (6 Ply-Rated) |
Related products
-
Cushman Hauler 800 ELiTE Lithium Electric
The Hauler 800 is designed for productivity. Easily transport tools and equipment around any course with your choice of maintenance-free ELiTE lithium powered by Samsung SDI Technology or a fuel-efficient 13.5 hp electronic fuel injection gas engine. Expect nothing less than the best with the proven performance and versatility of the Hauler 800.
- 11.7 hp 56.7V Lithium Battery
- 900 lb Towing Capacity
- 800 lb Vehicle Load Capacity
-

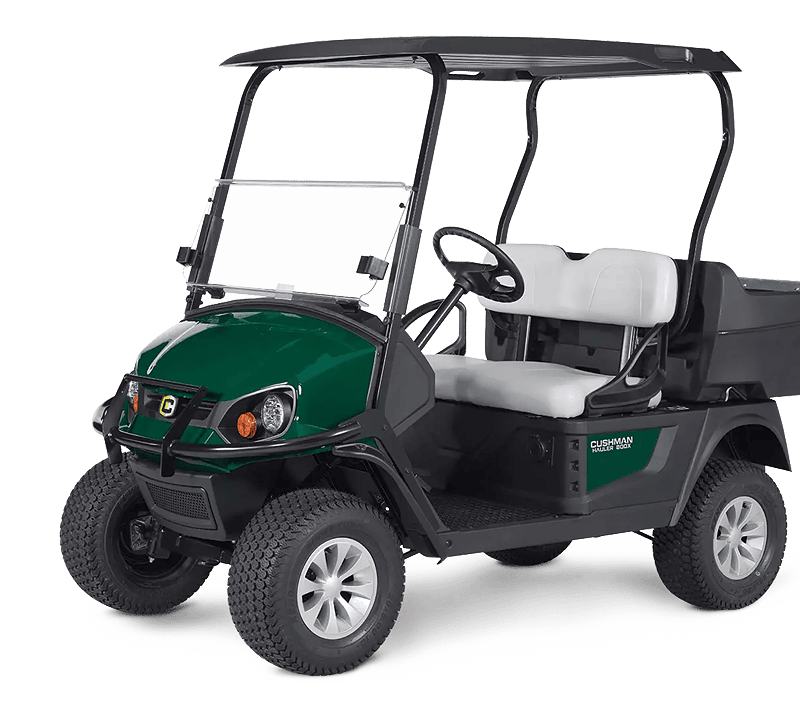

Cushman Hauler 800X Gas
